POWER TOWER The Ultimate Off Grid System 6000W / Up to 60kWh

Size
2 items left

GETTING OFF-GRID HAS NEVER BEEN EASIER

The Power Tower is the reliable, fuel-free power solution for your off-grid location.
As a completely integrated system combining solar, DC to AC conversion, battery charging, grid bypass and automatic generator start.

Power Tower Base

As a completely integrated system combining solar, DC to AC conversion, battery charging, grid bypass and automatic generator start, the Power Tower is a plug and play system like never before. Designed with Off Grid living in mind, the Power Tower offers 6000W continuous power and up to 18,000W of peak power. Coupled with 3500W of Solar MPPT charging capability, the Power Tower ensures you will never left out in the dark.

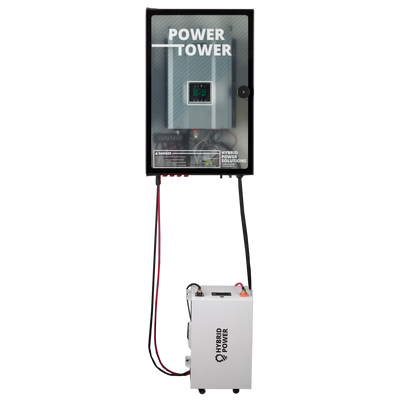

The Power Tower houses all electronics in one, elegant locking glass cabinet.
Since all off -grid components are housed in one single system, getting up and running is a simple as plugging in the batteries and your solar panels then wiring the output into your breaker panel. With an integrated Automatic Generator Start (AGS), even in the worse case scenarios, a backup generator can automatically be started when the batteries hit a critical level.

Just because the Power Tower is packed with features does not mean it isn’t reliable. With battery chemistries commonly used mining and industrial applications, the system is robust and safe. A low frequency transformer allows for very high surge capability and more reliable operation.

Specifications:

  • Continuous Power Output: 6000W
  • Peak Power Output: 18,000W
  • Output Voltage: 240VAC
  • Sine Wave: Pure Sine
  • AC Input: 240VAC
  • Battery Charging from Grid/Generator: Selectable up to 50A
  • Solar Array Power: 3500W Max
  • Maximum Solar Input Amperage: 30A
  • Maximum Solar Working Voltage: 135VDC
  • Weight: 75kg (160lbs)
  • Dimensions: 88 x 56 x 24.5 cm (34.6 x 22 x 9.64”)
  • Automatic Generator Start Voltage: 51VDC

Features:

  • Automatic Generator Start
  • MPPT Solar Charger
  • 5 battery ports (expandable up to 15)
  • LCD Display
  • Grid/Generator Bypass
  • Locked Cabinet

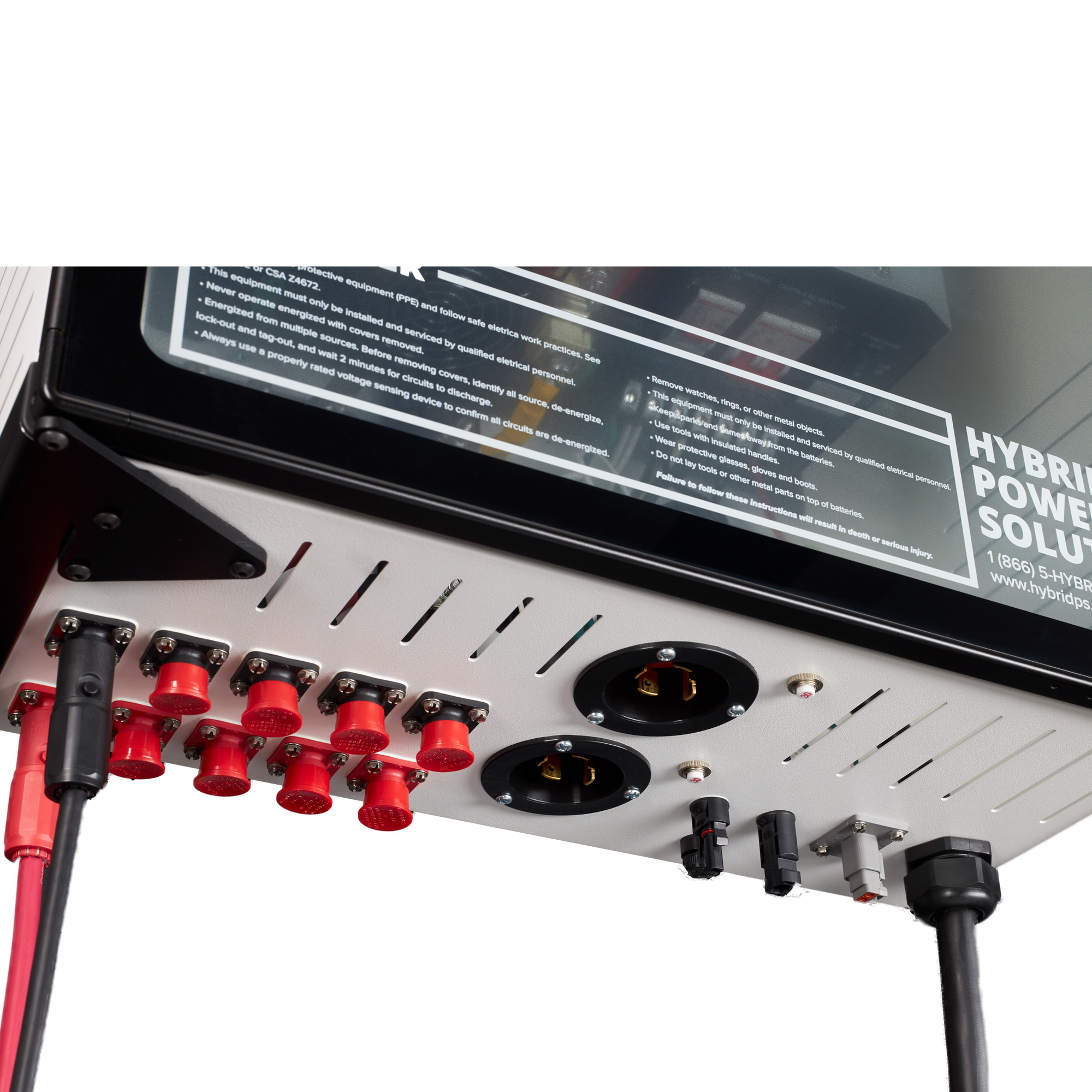

  • Common Twist Lock input for generator or grid tie allows for quick easy install and high powered 240V capability
  • Expandable battery system allows for up to 7 Power Tower batteries in parallel


Power Tower Batteries

A key feature of the Power Tower is the expandable battery system.
Every base kit comes with one 3.98kWh lithium battery but can be expanded to up to 15 allowing for almost 60kWh of battery storage. Not only are these batteries expandable but are plug and play right into the Power Tower base. Featuring locking casters, folding handles and mounting tabs, the batteries can be placed wherever best. They feature a built-in screen that displays battery voltage, power consumption, amperage and time left until fully charged or fully discharged.

The use of LiFePO4 batteries ensures a safe and long-lasting energy storage system that weighs 3 times less and takes up 3 times less space than lead acid batteries. These batteries also protect themselves from over discharge and over charge scenarios and feature a lifespan over 3000 cycles.

Not only do the Power Tower batteries pair perfectly with the Power Tower, but they can also be used with any pre-existing 48VDC system. This battery chemistry is used across all our products and has a proven track record in some of the harshest environments including mining and transit.

Specifications:

  • Voltage: 51.2VDC
  • Minimum Voltage: 40VDC
  • Maximum Voltage: 58.4VDC
  • Amp Hours: 78Ah
  • Usable Energy: 3.98 kWh
  • Suggested Charge Current: 20A
  • Maximum Charge Current: 100A
  • Maximum Continuous Discharge Current: 100A
  • Peak Discharge Current (3 sec): 200A
  • Cycles: 3500 cycles at 0.5C (100%DOD & 25°C & 80% remaining)
  • Cycles: 10,000 cycles (@80%DOD per cycle & 80% remaining @0.2C)
  • Total Weight: 60kg (132 lbs)
  • Dimensions: 460 x 360 x 270 mm (18 x 14 x 10.6”)
  • Charge Temperature: 0~60℃
  • Discharge Temperature: -20~45℃

Features:

  • Plug and Play up to 7 batteries together
  • Full 0-100% DOD (depth of discharge)
  • Over-voltage, under-voltage, over-current protection
  • 300A CSA rated fuse
  • LCD Display
  • Locking Casters for easy movement
  • Bolt down tabs for wall mounting or rack mount



SCALABLE

A unique feature of the Power Tower is the expandable battery system. Every base kit comes with one 3.98 kWh lithium battery but can be expanded to up to 15 allowing for almost 60 kWh of usable energy. Unlike traditional lead acid systems, venting is not required, so choose where the system fits best, plug in, and you have off-grid power.

SOLAR & WIND

Additional Solar and/or Wind charging can be added and plugged directly into the battery bank, meaning that the skies the limit when it comes to power availability. You could install 10kWh of Solar and 2kWh of Wind for example, increasing your overall power to 12kWh. With the Power Tower, getting off-grid has never been easier.

AUTOMATIC GENERATOR START

With an integrated Automatic Generator Start (AGS), even in the worst case scenarios, a backup generator can automatically be started when the batteries hit a critical level. The common twist lock input for generator or grid tie is conveniently installed directly on the Power Tower unit. This allows for quick easy installation and high powered 120V or 240V capability.

NEVER GET CAUGHT IN THE DARK

With 6000w of power output, and up to 60kWh of usable energy, Power Tower ensures you are never let out in the dark. It's easily expandable system, including optional generator, grid, solar and wind inputs means the sky is the limit when it comes to continuous power availability.

SAFEST BATTERY CHEMISTRY

All of our products use LiFePO4, the safest lithium-ion battery chemistry available on the market. Numerous features to keep yourself and your cabin safe. Over-voltage, under-voltage, over current protection with a 300A CSA rated fuse. Lithium Ion has a proven track record in some of the harshest environments including mining and transit. The fume-free batteries mean you can place the system anywhere with no dangerous fumes like traditional lead-acid.

NO MAINTENANCE

Our all-in-one systems require little to no maintenance, and offer a 2 year warranty if anything ever goes wrong. With an impressive lifespan of 10-15 years, you have a great off-grid solution that makes sense for your home or cottage.



KEY FEATURES

• Automatic generator start:
The common twist lock input for generator or grid tie allows for quick easy install and high powered 240V capability

• Ultimate off-grid set up:
MPPT solar charger removes reliance on the grid

• Expandable:
Plug and play battery system allows for up to 15 Power Tower batteries allowing for almost 60 kWh of usable energy. It features 5 battery ports (expandable up to 15)

• Easy to read and use:
LCD Display on Power Tower and Batteries meaning you always know how much power you have to play with

• Power Tower Batteries:
Full 0-100% DOD (depth of discharge)

• Safety Features:
Numerous features to keep yourself and your cabin safe. Over-voltage, under-voltage, over-current protection with a 300A CSA rated fuse. Lithium Ion has a proven track record in some of the harshest environments including mining and transit. The fume-free batteries mean you can place the system anywhere with no dangerous fumes like traditional lead-acid

• Easy to move with secure locking:
Power Tower Batteries feature locking casters for easy movement and bolt down tabs for wall or rack installation. The Power Tower Base is also lockable

• Quick and easy installation:
Grid/Generator bypass means this unit fits most off-grid locations
